Somfy · 28 series · ref. 1241230

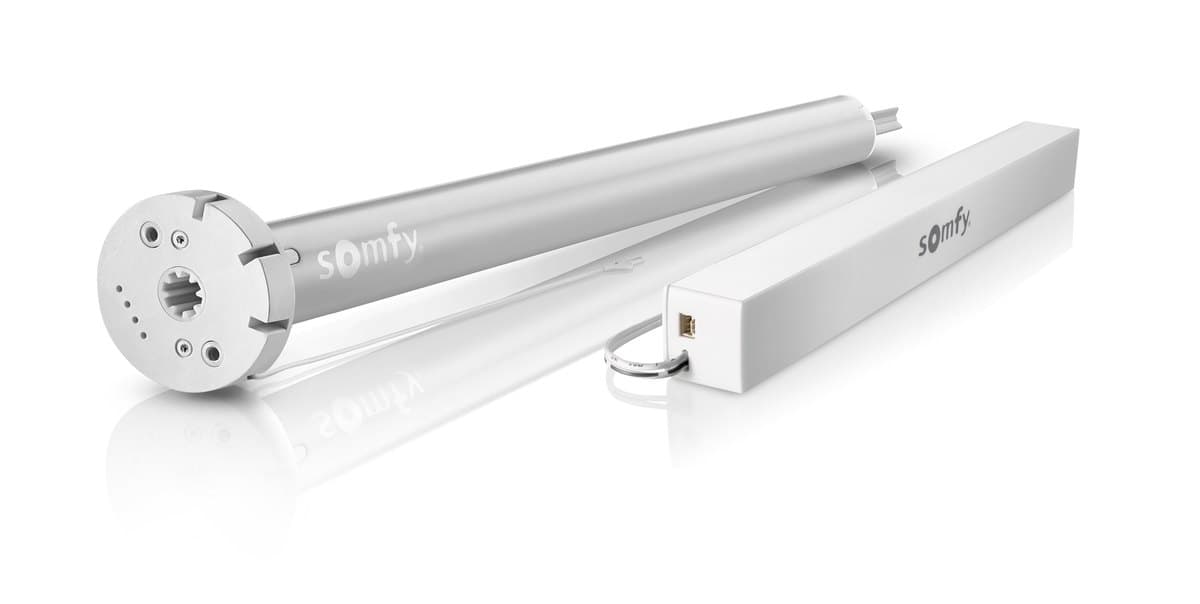

Sonesse 28 WireFree RTS — External Battery
The most compact motor in the lineup. Its battery sits outside the tube, which brings its length down to 13.82 in.
Price
$308 MSRP
Motor only. The rechargeable battery, which is required, is sold separately.
Request a quote for a price tailored to your project: more motors, better price.Prices subject to change without notice.
- Torque 1.1 Nm
- Noise 49 dB
- Min. width 16 3/8 in
- Power supply External lithium-ion battery
- Protocol RTS
Motor 01 / 19 — All 19 motors
- 01 · Sonesse 28 WireFree RTS — External Battery$308 MSRP
- 02 · Sonesse 30 RTS 24V DC$470 MSRP
- 03 · Sonesse 30 RS485 24V DC$577 MSRP
- 04 · Sonesse 30 Zigbee 24V DC$550 MSRP
- 05 · Roll Up 28 WireFree RTS V2 — lithium-ion battery$341 MSRP
- 06 · Sonesse 28 WireFree RTS — lithium-ion battery$359 MSRP
- 07 · Sonesse ULTRA 30 WireFree Zigbee — lithium-ion battery$424 MSRP
- 08 · Sonesse ULTRA 30 WireFree RTS — lithium-ion battery$404 MSRP
- 09 · Sonesse 40 RS485 404S2 — 120 V$731 MSRP
- 10 · Sonesse 40 Zigbee 404S2 — 120 V$608 MSRP
- 11 · Sonesse 40 RTS 404S2 — 120 V$579 MSRP
- 12 · Sonesse 40 WT 404S2 — 120 V$355 MSRP
- 13 · Sonesse 40 Zigbee 409R2 — 120 V$639 MSRP
- 14 · Sonesse 40 WireFree RTS — lithium-ion battery$589 MSRP
- 15 · Sonesse 40 WireFree Zigbee — lithium-ion battery$703 MSRP
- 16 · Maestria+ 50 RTS 510A2$642 MSRP
- 17 · Maestria+ 50 RTS 525A2$723 MSRP
- 18 · Maestria+ 50 RTS 535A2$790 MSRP
- 19 · Maestria+ 50 RTS 550R2$819 MSRP
01 — At a glance
What sets this motor apart.
This tubular motor delivers 1.1 newton-metres, the same power as the Sonesse 28 with built-in battery. What sets it apart is where the battery goes: it mounts outside the tube, hidden behind the blind or in the headbox.
This setup makes the motor nearly eight inches shorter. It is the only model in the catalogue that can fit a narrow window.
13.82 in long
The most compact motor in the lineup, nearly eight inches shorter than the built-in battery version.
Small-diameter head
Reduces the visible gap between the blind and the window frame.
49 dB noise level
Part of Somfy's Designed for Silence range.
Wall or solar charging
The battery charges from a wall outlet or with a solar panel installed in the window.
Wired power option
A permanently plugged-in 12 V DC power supply replaces the battery and eliminates charging.
MY intermediate position
A favourite opening position can be saved and recalled with a single button.
02 — Spec sheet
The numbers, straight up.
Somfy documentation
All the official documentation (14 documents, French and English)
Specifications checked one by one against the Somfy Pro Canada catalogue on October 1, 2026.
| Torque | 1.1 Nm |
|---|---|
| Speed | 20 rpm |
| Noise level | 49 dB |
| Radio protocol | RTS, 433.42 MHz |
| Open-field range | 200 m |
| Programmable channels | 12 |
| Power supply | 12 V external lithium-ion battery, or 12 V DC power supply |
| Motor length | 13.82 in (351 mm) |
| Minimum blind width | 16 3/8 in |
| Motor diameter | 28 mm |
| Compatible tube | 1 1/2 in and 2 in |
| Weight | 0.38 kg |
| Protection rating | IP 20 — indoor use |
| Operating temperature | 0 to 60 °C |
| Power draw in operation | 13.2 W |
| Standby power | 0.001 W |
| Rated current | 1.1 A |
| Limit capacity | 200 turns |
| Insulation class | Class III |
| Antenna | External |
| Warranty | 5 years |
Official Somfy documentation
Every official Somfy document for this motor, gathered in one place by Le Gars des Stores, certified Somfy Expert. The PDFs open on Somfy's website.
In English (13)
Spec sheets
Installation and use
Programming
Technical catalogues
Brochures and flyers
Environment
In French (1)
Spec sheets
03 — Which blinds
The right blind for this motor.
16 3/8 in
Blind width
This motor requires a blind at least 16 3/8 in wide.
Below this width, the motor does not fit in the aluminum tube the fabric rolls onto.
This is the smallest allowable width in the entire lineup. No other motor fits a window this narrow; below it, only a chain mechanism is possible.
What to consider before choosing
- The rechargeable battery is required. The motor does not work without it. The real starting price is therefore $414, higher than the Sonesse 28 with built-in battery at $359.
- This model is not the entry-level option. It is chosen for its compact size, or when a 12 V wired power supply is wanted.
- The battery stays visible if its location is poorly planned. Plan for a headbox, or an installation behind the bottom bar. Extensions of 10, 48 and 96 inches let you move it away from the motor.
- The 1.1 newton-metre torque is not suited to large shades. Those need a Sonesse ULTRA 30, although its length requires a minimum width of 28 1/4 in.
04 — Compatibility and power
How it's powered and controlled.
- Power supply
- External lithium-ion battery
- No wires to run, installation in one visit: the right choice for renovations. An occasional recharge.
- Protocol
- RTS
- Remote or TaHoma app, up to 200 m of range. The simplest and most widely used choice.
- Compatible tube
- 1 1/2 in and 2 in
- Family: 28 and 30 series
- Length
- 13.82 in
- Min. width: 16 3/8 in
05 — Frequently asked questions
What customers ask.
Which motor should I choose for a narrow window?
The Sonesse 28 with external battery is the only motor in the catalogue suited to a blind less than 24 in wide. With its battery outside the tube, it measures only 13.82 in and fits a blind from 16 3/8 in.
Why is the battery outside the tube?
To shorten the motor. A built-in battery takes up nearly eight inches inside the tube. By moving it, Somfy frees up that space and makes the motor compatible with narrow windows.
Is the battery visible once the blind is installed?
It is if its location isn't planned. It can be hidden behind the bottom bar or in a cassette, or moved away from the motor with 10, 48 or 96-inch extensions.
Can this motor be used without a battery?
Yes. A permanently plugged-in 12 V DC power supply replaces the battery and eliminates charging. This works well when there is an outlet near the blind.
Does this motor cost less than a built-in battery model?
No. Since the battery is required and sold separately, the real starting price is higher than the Sonesse 28 with built-in battery. This model is chosen for its compact size, not its price.
Do you install in Montreal, Sherbrooke and the Eastern Townships?
Yes. Le Gars des Stores serves the West Island and Montreal, Vaudreuil-Dorion, the South Shore, the North Shore, western Laval and the Eastern Townships (Sherbrooke, Magog); elsewhere, depending on the project. We handle measuring, made-to-measure ordering, installation and programming.
06 — Same family
Compare with its neighbours.
28 and 30 series — compatible tube: 1 1/2 in and 2 in
| Motor | Length | Min. width | Torque | Noise | Power supply | Price | View page |
|---|---|---|---|---|---|---|---|
| Sonesse 28 WireFree RTS — External Battery — this page | 13.82 in | 16 3/8 in | 1.1 Nm | 49 dB | External lithium-ion battery | $308 MSRP | |
| Sonesse 30 RTS 24V DC | 17.72 in | 20 1/4 in | 2 Nm | 47 dB | Wired 24 V | $470 MSRP | |
| Sonesse 30 RS485 24V DC | 18.98 in | 21 1/2 in | 2 Nm | 47 dB | Wired 24 V | $577 MSRP | |
| Sonesse 30 Zigbee 24V DC | 18.98 in | 21 1/2 in | 2 Nm | 47 dB | Wired 24 V | $550 MSRP | |
| Roll Up 28 WireFree RTS V2 — lithium-ion battery | 21.48 in | 24 in | 1.1 Nm | 54 dB | Built-in lithium-ion battery | $341 MSRP | |
| Sonesse 28 WireFree RTS — lithium-ion battery | 21.61 in | 24 1/8 in | 1.1 Nm | 49 dB | Built-in lithium-ion battery | $359 MSRP | |
| Sonesse ULTRA 30 WireFree Zigbee — lithium-ion battery | 25.59 in | 28 1/8 in | 2 Nm | 42 dB | Built-in lithium-ion battery | $424 MSRP | |
| Sonesse ULTRA 30 WireFree RTS — lithium-ion battery | 25.69 in | 28 1/4 in | 2 Nm | 42 dB | Built-in lithium-ion battery | $404 MSRP |
