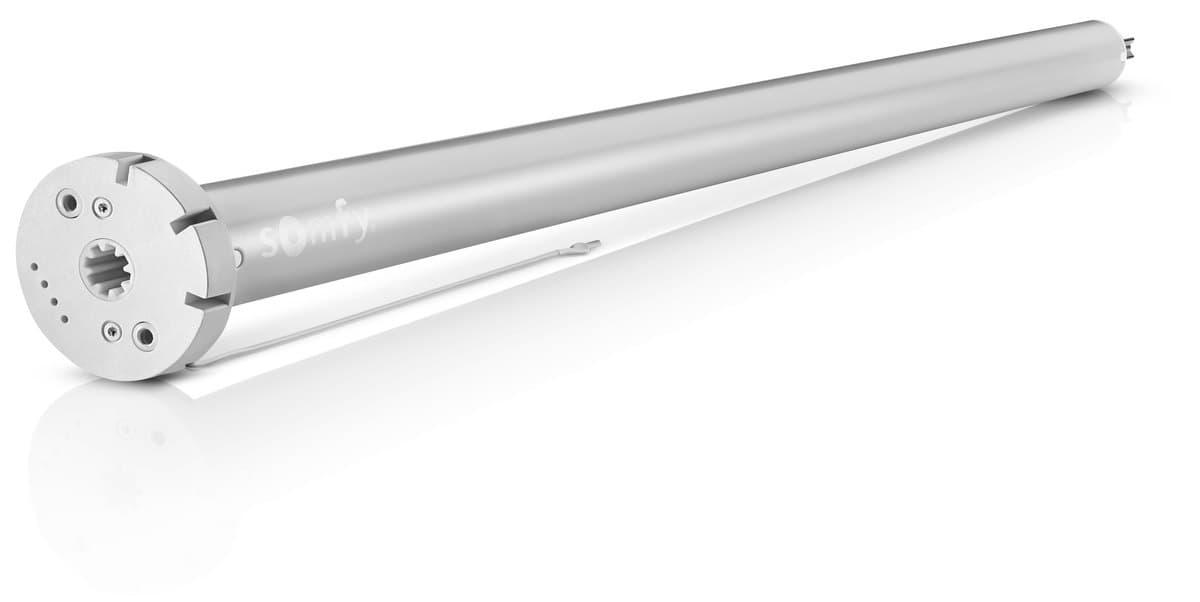

Somfy · 30 series · ref. 1003310
Sonesse ULTRA 30 WireFree RTS — lithium-ion battery
The quietest RTS battery motor: forty-two decibels, without a single wire.
Price
$404 MSRP
Motor only. Installation and programming billed separately.
Request a quote for a price tailored to your project: more motors, better price.Prices subject to change without notice.
- Torque 2 Nm
- Noise 42 dB
- Min. width 28 1/4 in
- Power supply Built-in lithium-ion battery
- Protocol RTS
Motor 08 / 19 — All 19 motors
- 01 · Sonesse 28 WireFree RTS — External Battery$308 MSRP
- 02 · Sonesse 30 RTS 24V DC$470 MSRP
- 03 · Sonesse 30 RS485 24V DC$577 MSRP
- 04 · Sonesse 30 Zigbee 24V DC$550 MSRP
- 05 · Roll Up 28 WireFree RTS V2 — lithium-ion battery$341 MSRP
- 06 · Sonesse 28 WireFree RTS — lithium-ion battery$359 MSRP
- 07 · Sonesse ULTRA 30 WireFree Zigbee — lithium-ion battery$424 MSRP
- 08 · Sonesse ULTRA 30 WireFree RTS — lithium-ion battery$404 MSRP
- 09 · Sonesse 40 RS485 404S2 — 120 V$731 MSRP
- 10 · Sonesse 40 Zigbee 404S2 — 120 V$608 MSRP
- 11 · Sonesse 40 RTS 404S2 — 120 V$579 MSRP
- 12 · Sonesse 40 WT 404S2 — 120 V$355 MSRP
- 13 · Sonesse 40 Zigbee 409R2 — 120 V$639 MSRP
- 14 · Sonesse 40 WireFree RTS — lithium-ion battery$589 MSRP
- 15 · Sonesse 40 WireFree Zigbee — lithium-ion battery$703 MSRP
- 16 · Maestria+ 50 RTS 510A2$642 MSRP
- 17 · Maestria+ 50 RTS 525A2$723 MSRP
- 18 · Maestria+ 50 RTS 535A2$790 MSRP
- 19 · Maestria+ 50 RTS 550R2$819 MSRP
01 — At a glance
What sets this motor apart.
This motor takes the principle of the Sonesse 28 — built-in rechargeable battery, no wiring — and raises the torque from 1.1 to 2 newton-metres. This reserve of power makes it possible to operate a wide shade, a thick fabric or a very tall blind without straining the mechanism.
It is also quieter than the Sonesse 28: 42 dB compared with 49, a clearly noticeable difference in a bedroom.
2 newton-metres of torque
Nearly double the Sonesse 28, for wide shades and heavy fabrics.
42 dB noise level
The quietest RTS battery motor.
Battery built into the tube
No external accessories, nothing visible.
Solar charging available
A panel installed in the window eliminates manual charging.
Soft start and stop
Operation begins and ends smoothly. Adjustable speed.
Tilt control
Compatible with the Situo 5 Variation for slatted blinds and dual zebra shades.
02 — Spec sheet
The numbers, straight up.
Somfy documentation
All the official documentation (11 documents, French and English)
Specifications checked one by one against the Somfy Pro Canada catalogue on October 1, 2026.
| Torque | 2 Nm |
|---|---|
| Speed | 20 rpm |
| Noise level | 42 dB |
| Radio protocol | RTS, 433.42 MHz |
| Open-field range | 200 m |
| Programmable channels | 12 |
| Power supply | Built-in 12 V lithium-ion battery |
| Motor length | 25.69 in (653 mm) |
| Minimum blind width | 28 1/4 in |
| Motor diameter | 30 mm |
| Compatible tube | 1 1/2 in and 2 in |
| Weight | 0.79 kg |
| Protection rating | IP 20 — indoor use |
| Operating temperature | 0 to 60 °C |
| Power draw in operation | 18 W |
| Standby power | 0.001 W |
| Rated current | 1.5 A |
| Limit capacity | 200 turns |
| Insulation class | Class III |
| Antenna | External |
| Warranty | 5 years |
Official Somfy documentation
Every official Somfy document for this motor, gathered in one place by Le Gars des Stores, certified Somfy Expert. The PDFs open on Somfy's website.
In English (9)
Spec sheets
Installation and use
Programming
Technical catalogues
Brochures and flyers
In French (2)
Spec sheets
Installation and use
03 — Which blinds
The right blind for this motor.
28 1/4 in
Blind width
This motor requires a blind at least 28 1/4 in wide.
Below this width, the motor does not fit in the aluminum tube the fabric rolls onto. It is the bulkiest model in the interior lineup.
For a narrower window that still needs 2 newton-metres, the Sonesse 30 RTS 24V goes down to 20 1/4 in, with a wired connection.
What to consider before choosing
- Its 25.69 in length requires a minimum width of 28 1/4 in, compared with 24 1/8 in for the Sonesse 28 with built-in battery.
- This motor runs on RTS: the remote sends the command without receiving confirmation. To check the blind's position and battery level remotely, the Zigbee version is the way to go.
- This motor installs in a 1 1/2 in tube as well as a 2 in tube.
04 — Compatibility and power
How it's powered and controlled.
- Power supply
- Built-in lithium-ion battery
- No wires to run, installation in one visit: the right choice for renovations. An occasional recharge.
- Protocol
- RTS
- Remote or TaHoma app, up to 200 m of range. The simplest and most widely used choice.
- Compatible tube
- 1 1/2 in and 2 in
- Family: 28 and 30 series
- Length
- 25.69 in
- Min. width: 28 1/4 in
05 — Frequently asked questions
What customers ask.
Which motor should I choose for a large shade?
The Sonesse ULTRA 30 delivers 2 newton-metres, compared with 1.1 for the Sonesse 28. This reserve of power can operate a wide shade, a thick blackout fabric or a very tall blind. Beyond that, the Sonesse 40 goes up to 3 newton-metres.
What is the quietest blind motor?
In RTS, the Sonesse ULTRA 30, at 42 dB: seven decibels less than the Sonesse 28 and the Sonesse 40, a clearly noticeable difference. It is the recommended choice for a bedroom. In Zigbee, the Sonesse 40 motors go down to 40 dB.
Is a more powerful motor noisier?
Not in this lineup. The ULTRA 30 is both more powerful and quieter than the Sonesse 28. The noise level depends on the motor's design, not its torque.
What is the minimum blind width?
28 1/4 in. This motor measures 25.69 in, making it the bulkiest in the interior lineup. For a narrower window that still needs 2 newton-metres, the Sonesse 30 RTS 24V goes down to 20 1/4 in, with a wired connection.
Does this motor need frequent charging?
Its built-in lithium-ion battery is charged a few times a year depending on use. A solar panel installed in the window eliminates manual charging.
Do you install in Montreal, Sherbrooke and the Eastern Townships?
Yes. Le Gars des Stores serves the West Island and Montreal, Vaudreuil-Dorion, the South Shore, the North Shore, western Laval and the Eastern Townships (Sherbrooke, Magog); elsewhere, depending on the project. We handle measuring, made-to-measure ordering, installation and programming.
06 — Same family
Compare with its neighbours.
28 and 30 series — compatible tube: 1 1/2 in and 2 in
| Motor | Length | Min. width | Torque | Noise | Power supply | Price | View page |
|---|---|---|---|---|---|---|---|
| Sonesse 28 WireFree RTS — External Battery | 13.82 in | 16 3/8 in | 1.1 Nm | 49 dB | External lithium-ion battery | $308 MSRP | |
| Sonesse 30 RTS 24V DC | 17.72 in | 20 1/4 in | 2 Nm | 47 dB | Wired 24 V | $470 MSRP | |
| Sonesse 30 RS485 24V DC | 18.98 in | 21 1/2 in | 2 Nm | 47 dB | Wired 24 V | $577 MSRP | |
| Sonesse 30 Zigbee 24V DC | 18.98 in | 21 1/2 in | 2 Nm | 47 dB | Wired 24 V | $550 MSRP | |
| Roll Up 28 WireFree RTS V2 — lithium-ion battery | 21.48 in | 24 in | 1.1 Nm | 54 dB | Built-in lithium-ion battery | $341 MSRP | |
| Sonesse 28 WireFree RTS — lithium-ion battery | 21.61 in | 24 1/8 in | 1.1 Nm | 49 dB | Built-in lithium-ion battery | $359 MSRP | |
| Sonesse ULTRA 30 WireFree Zigbee — lithium-ion battery | 25.59 in | 28 1/8 in | 2 Nm | 42 dB | Built-in lithium-ion battery | $424 MSRP | |
| Sonesse ULTRA 30 WireFree RTS — lithium-ion battery — this page | 25.69 in | 28 1/4 in | 2 Nm | 42 dB | Built-in lithium-ion battery | $404 MSRP |
